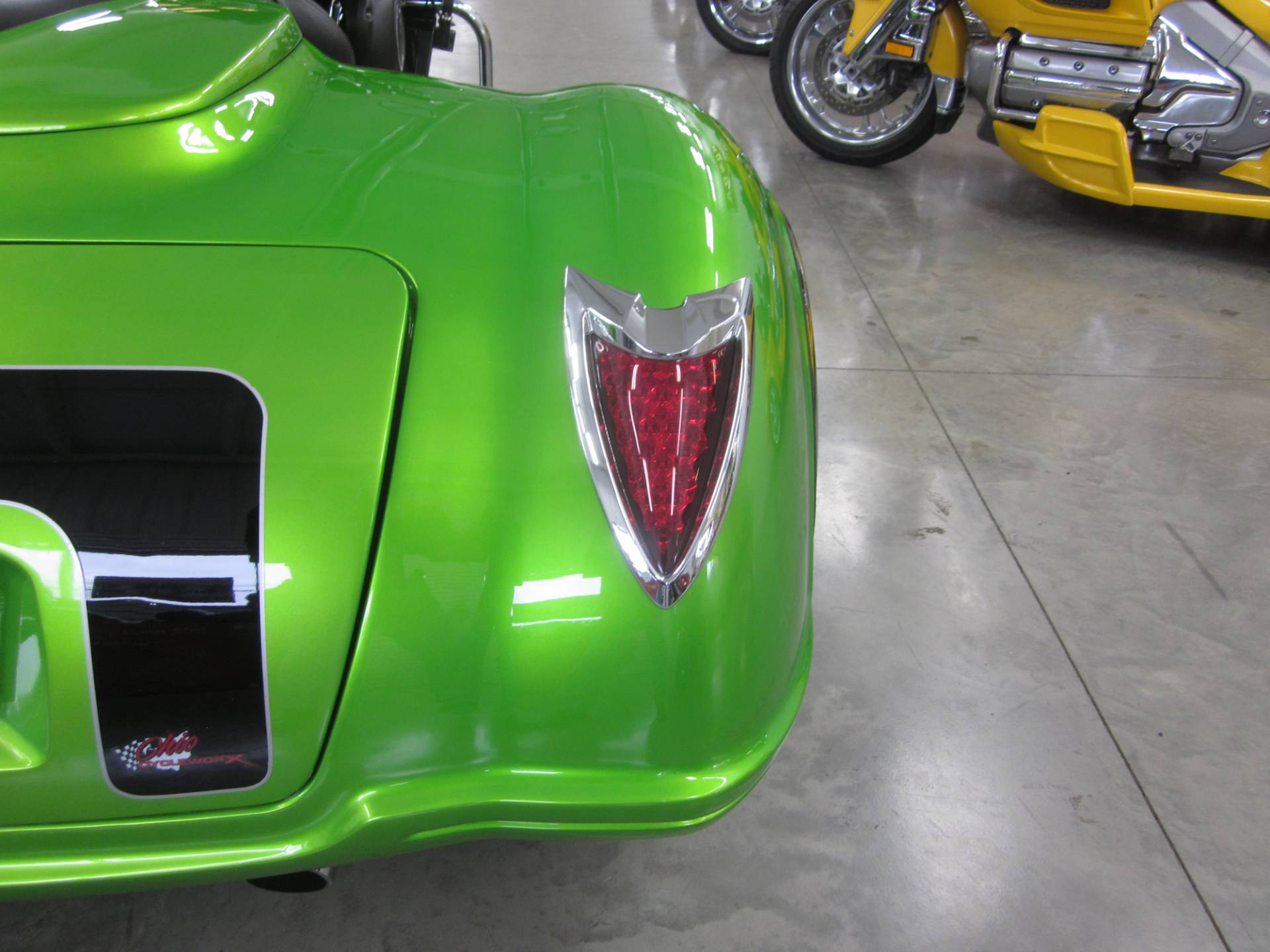

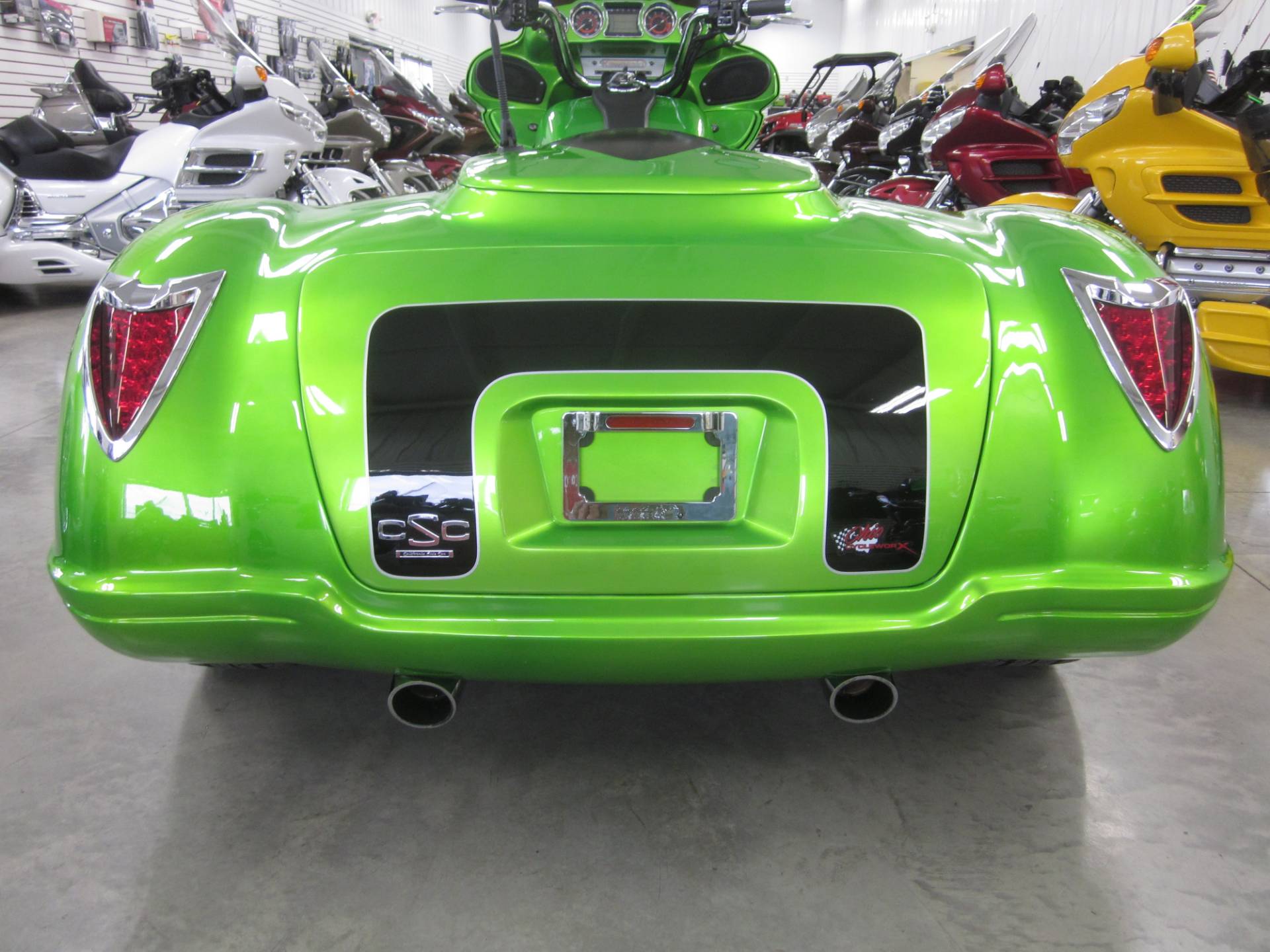

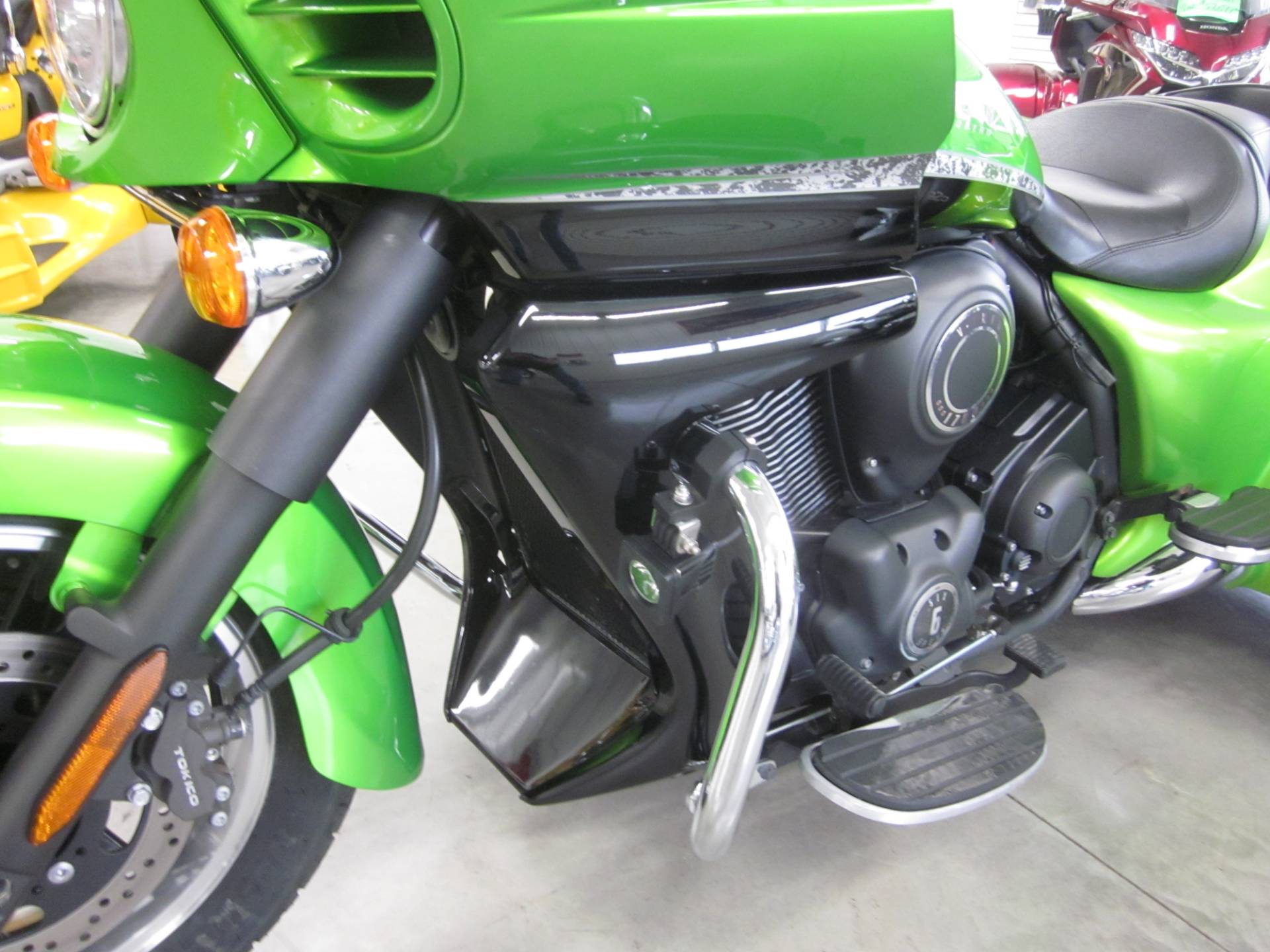

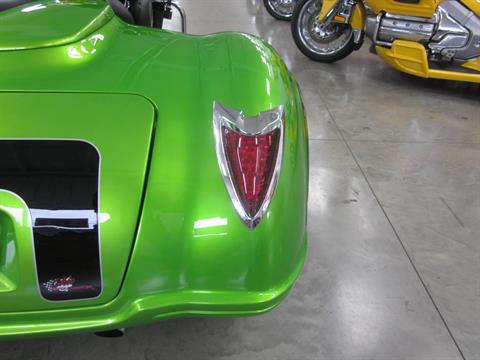

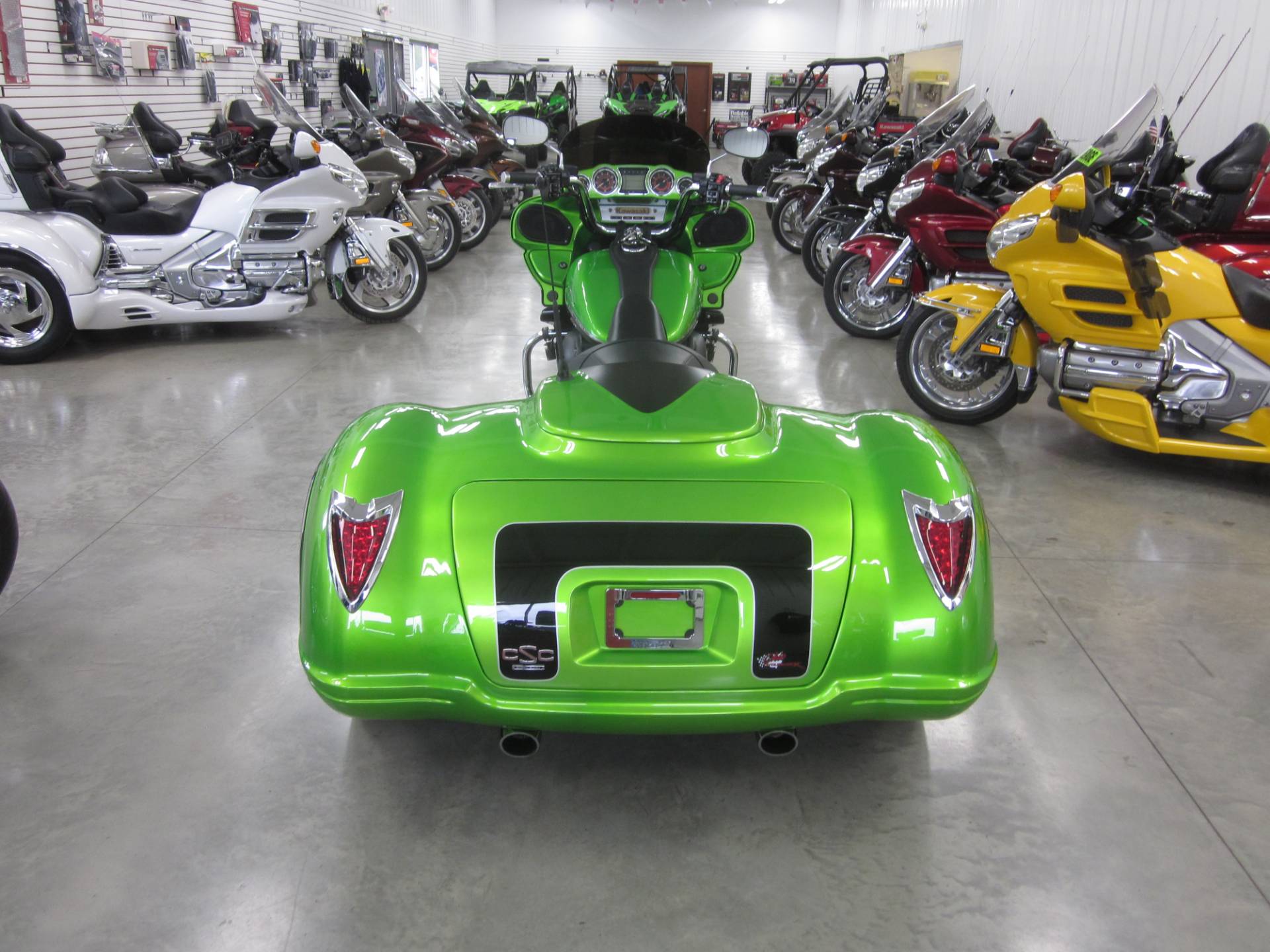

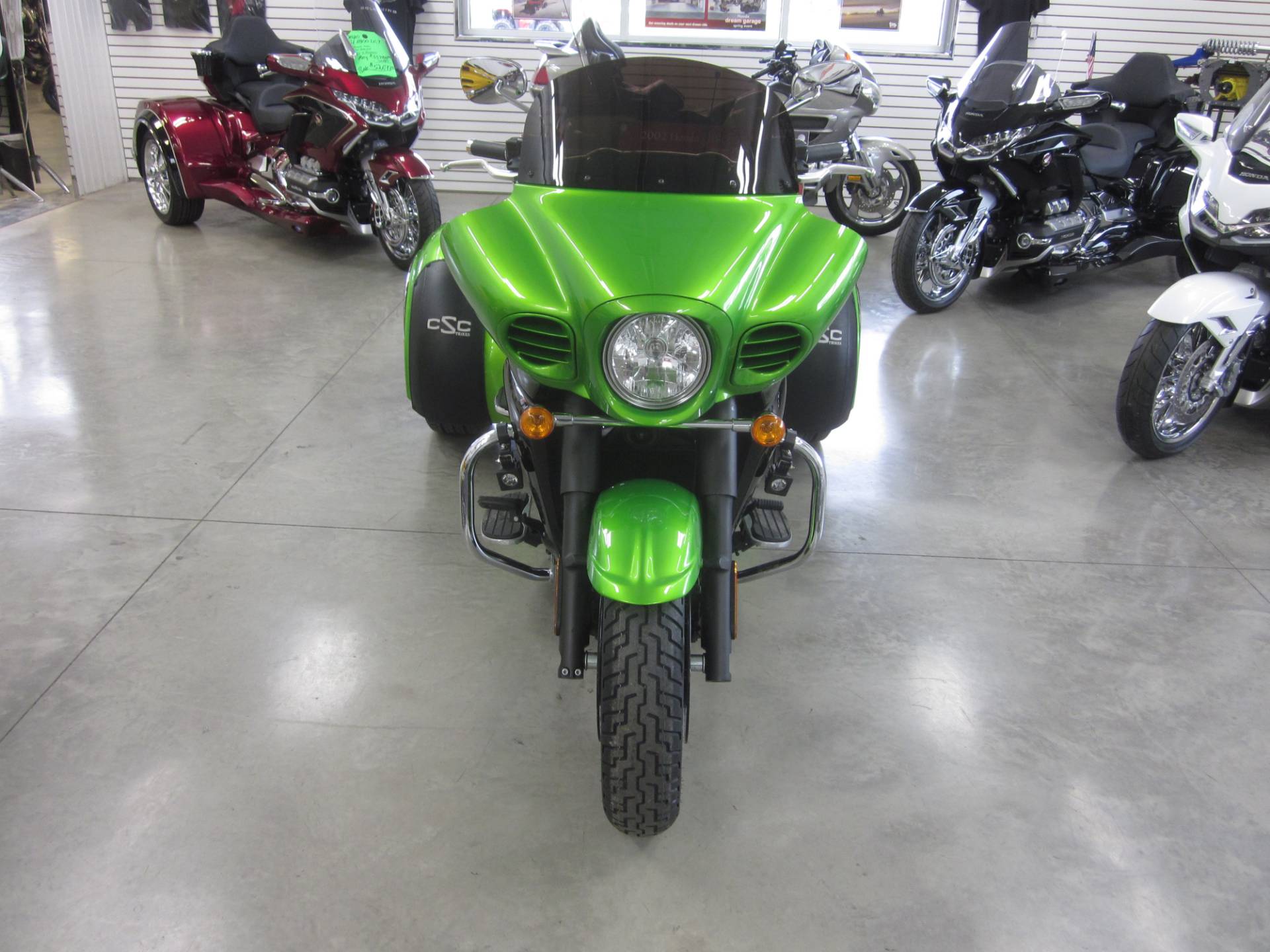

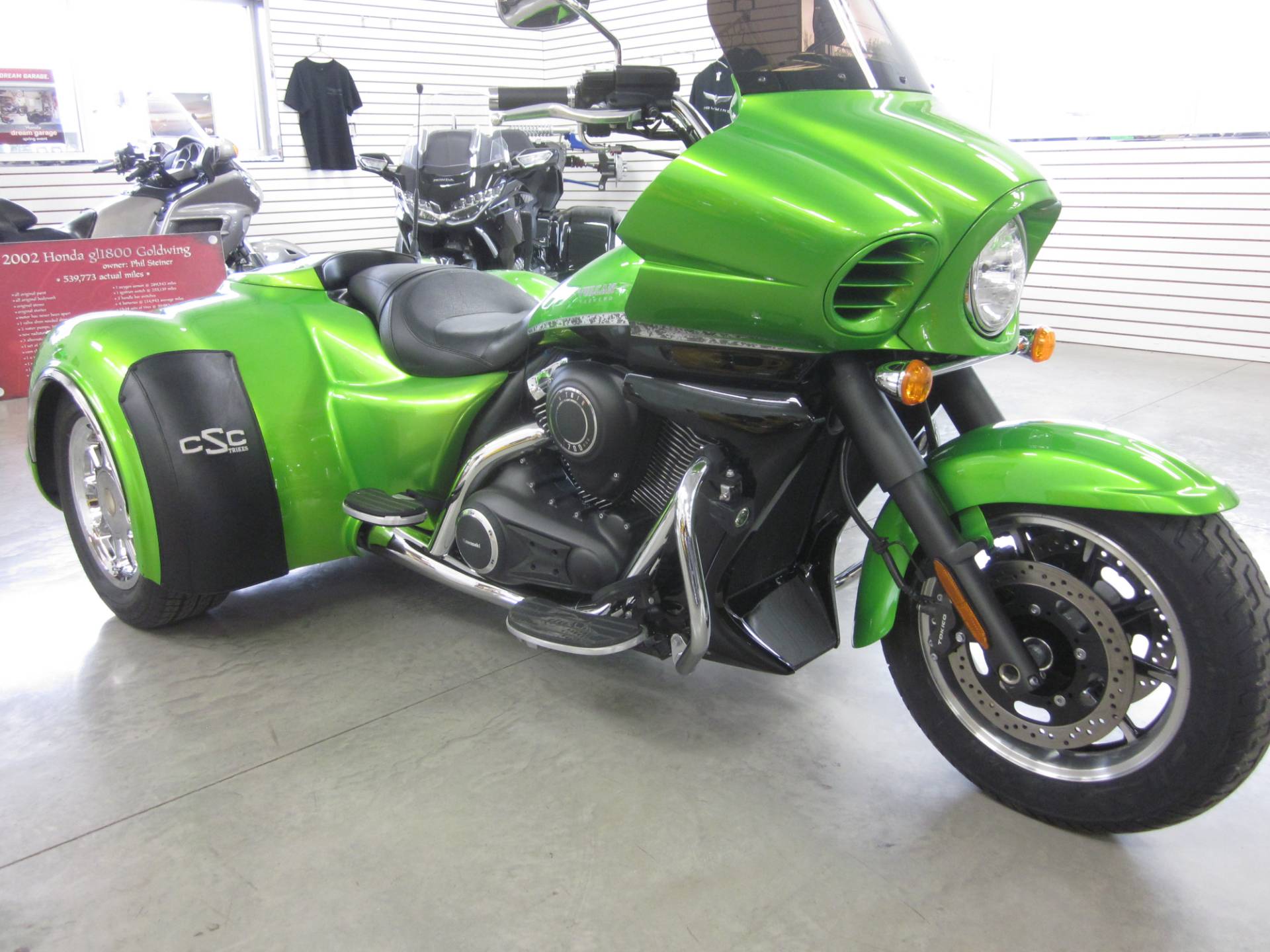

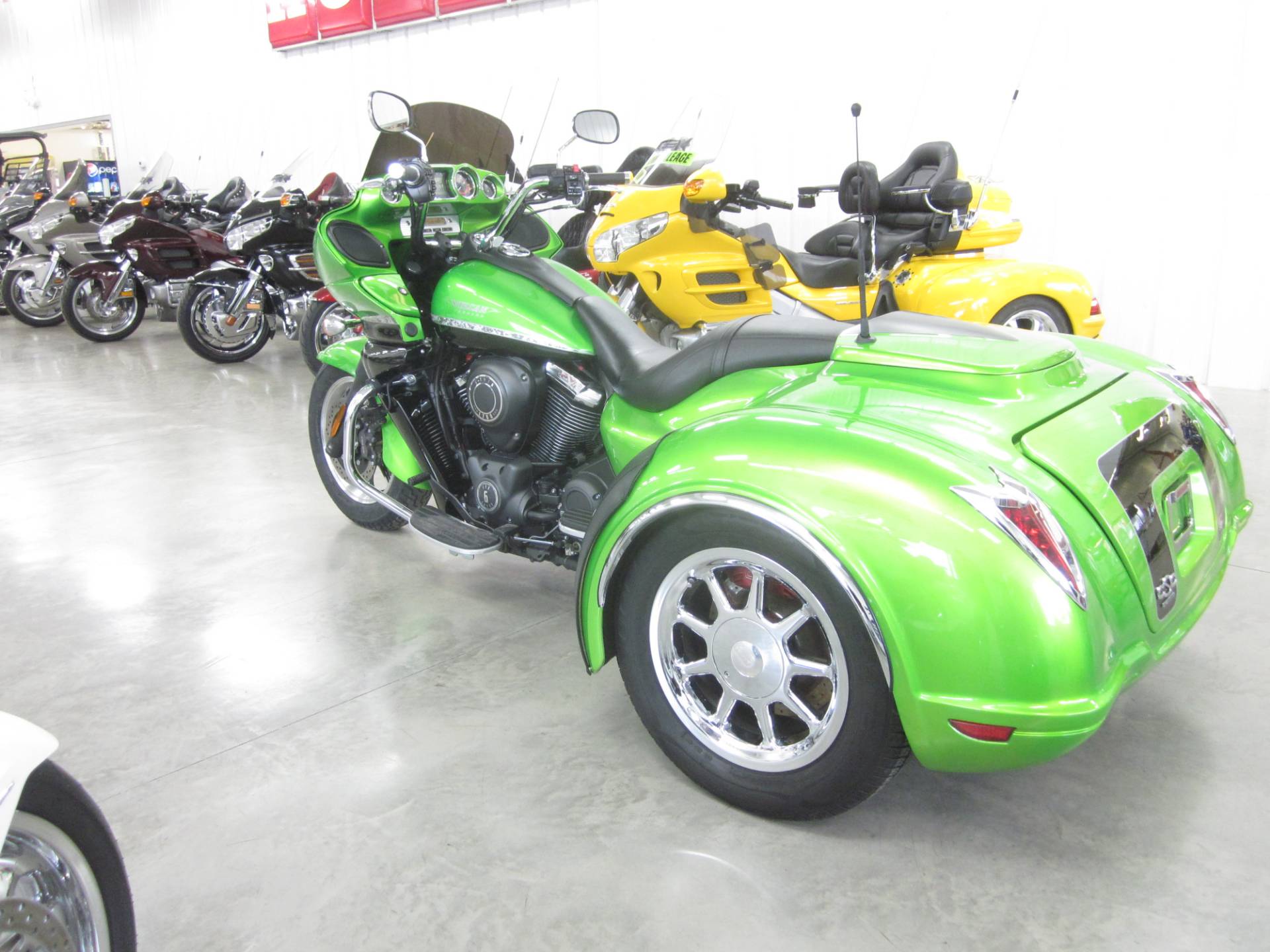

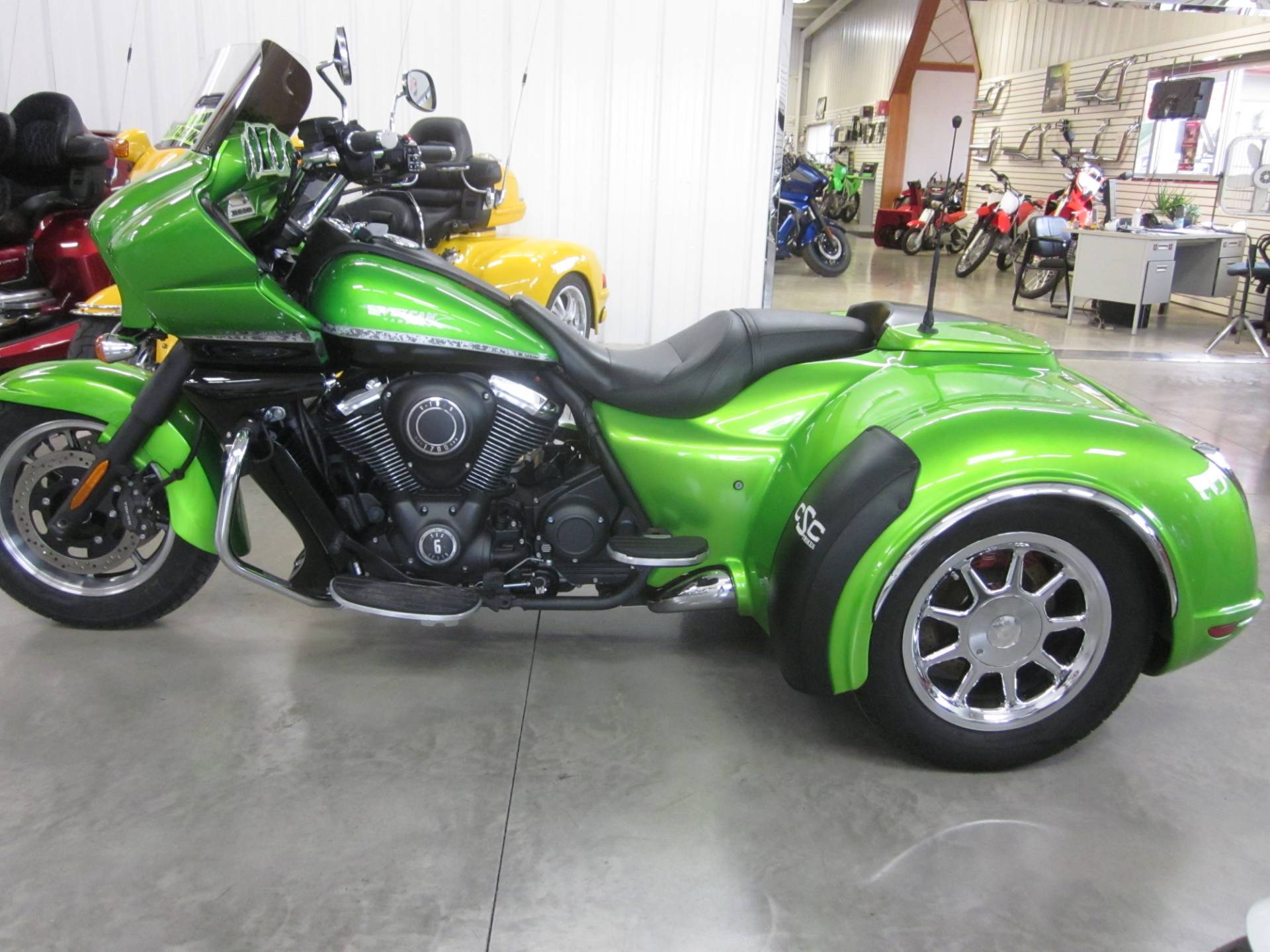

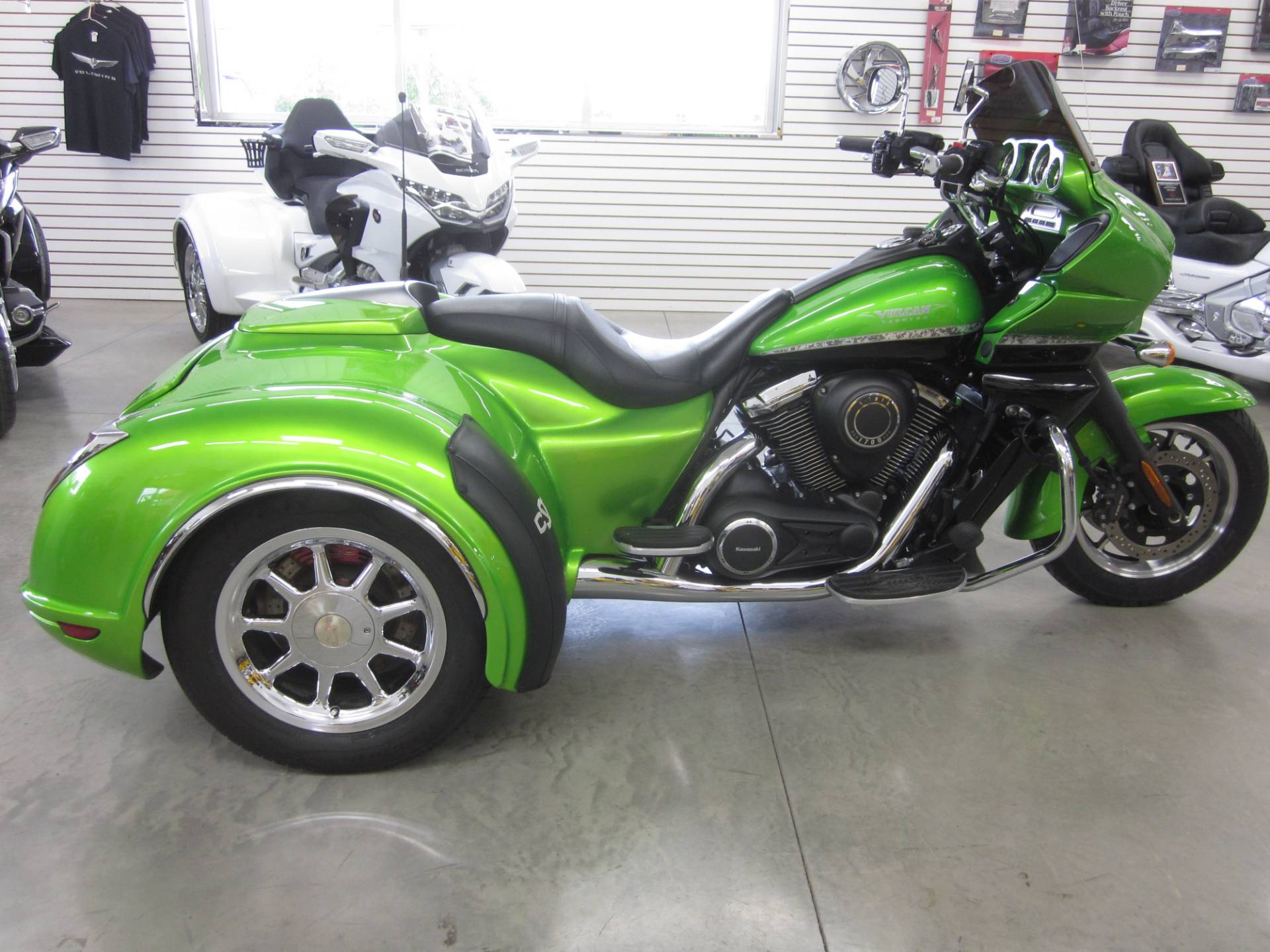

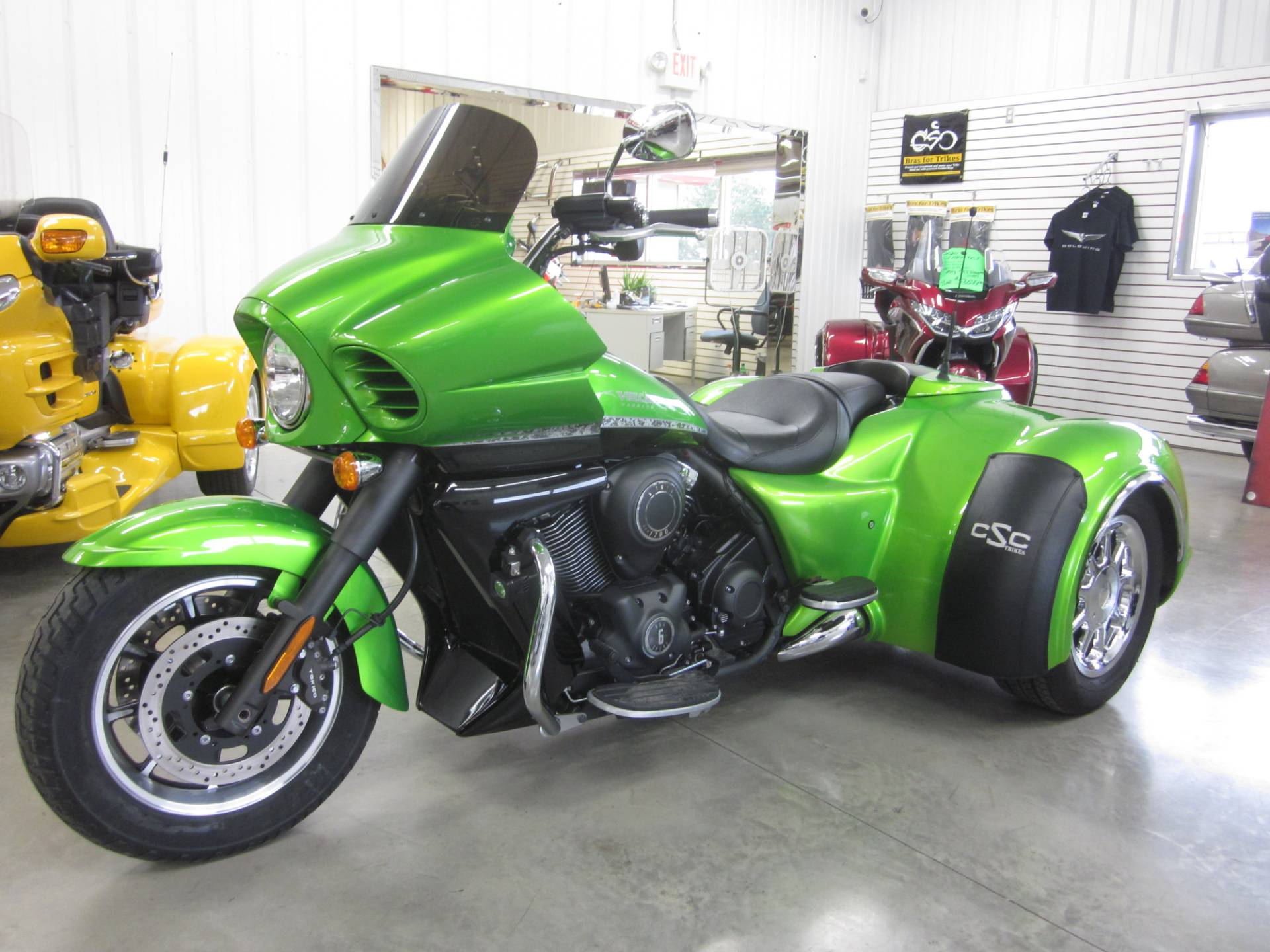

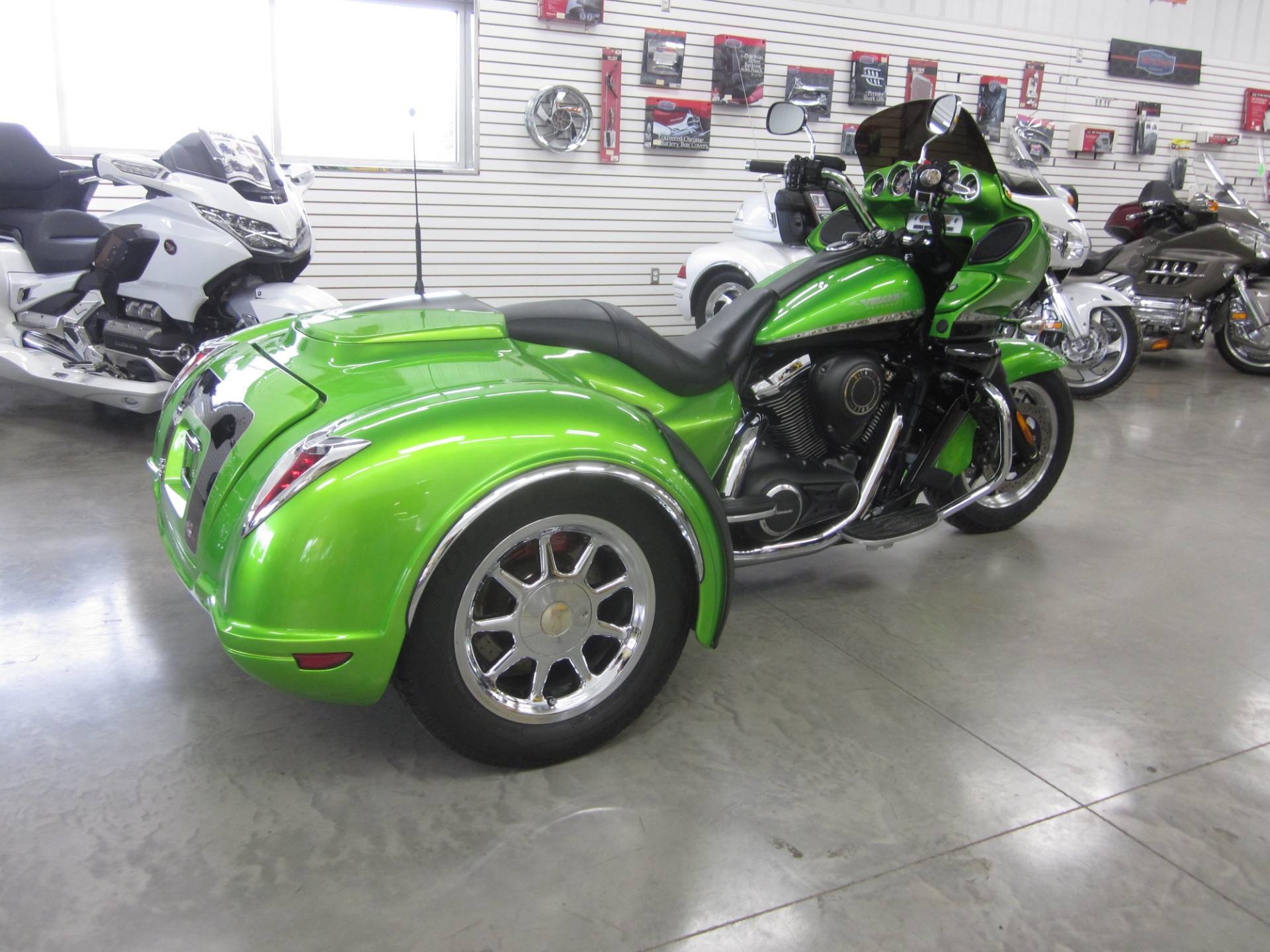

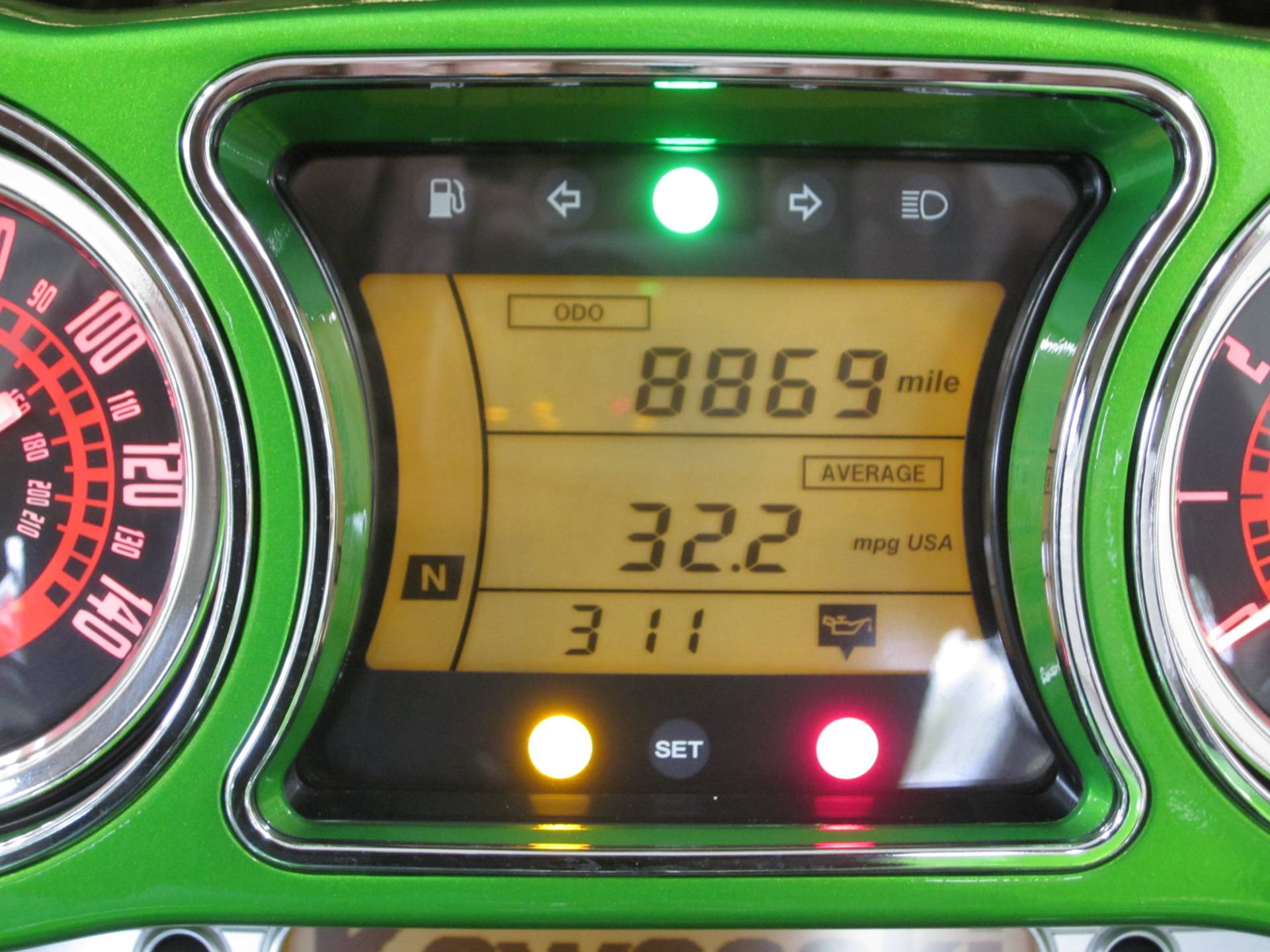

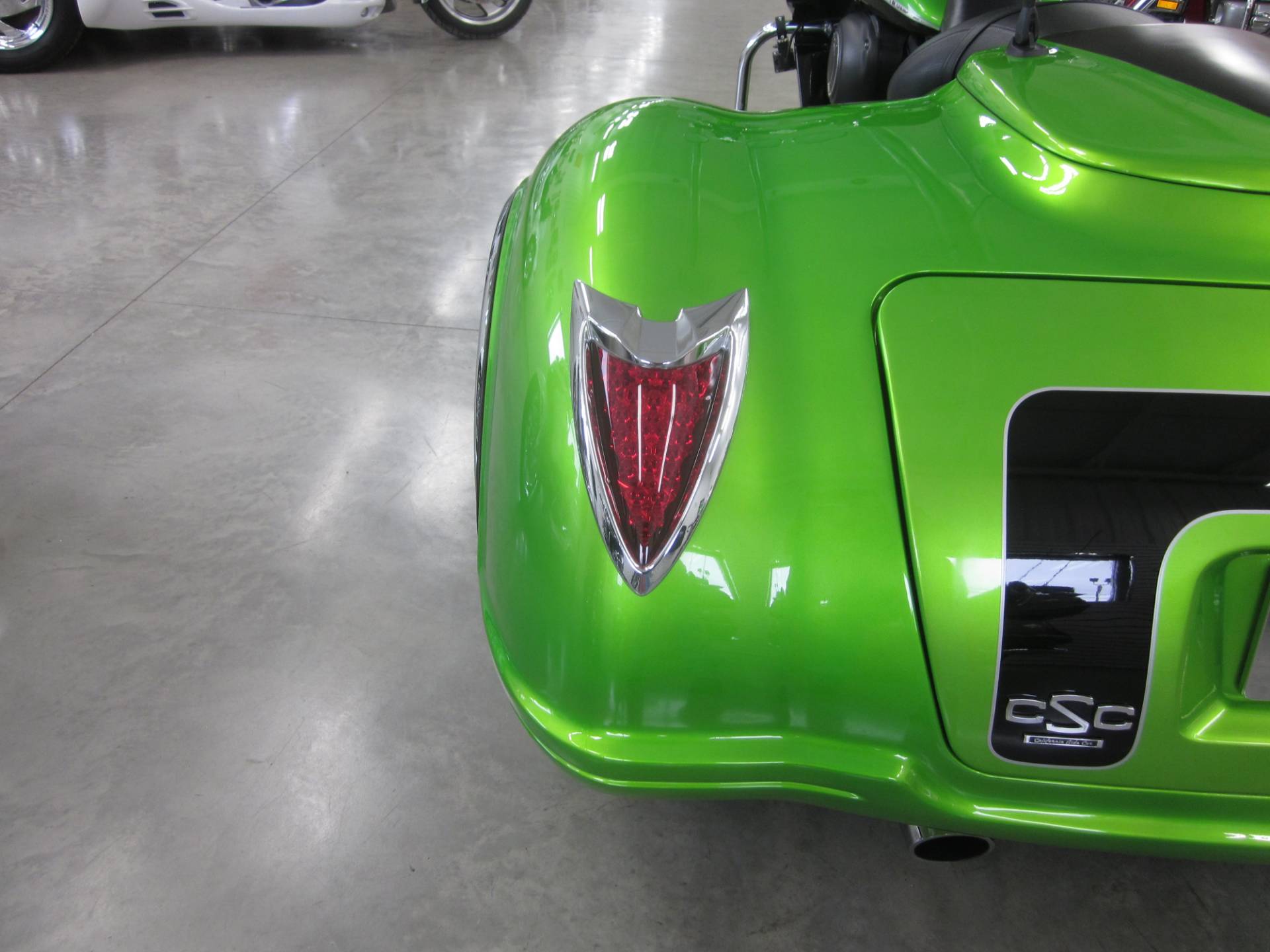

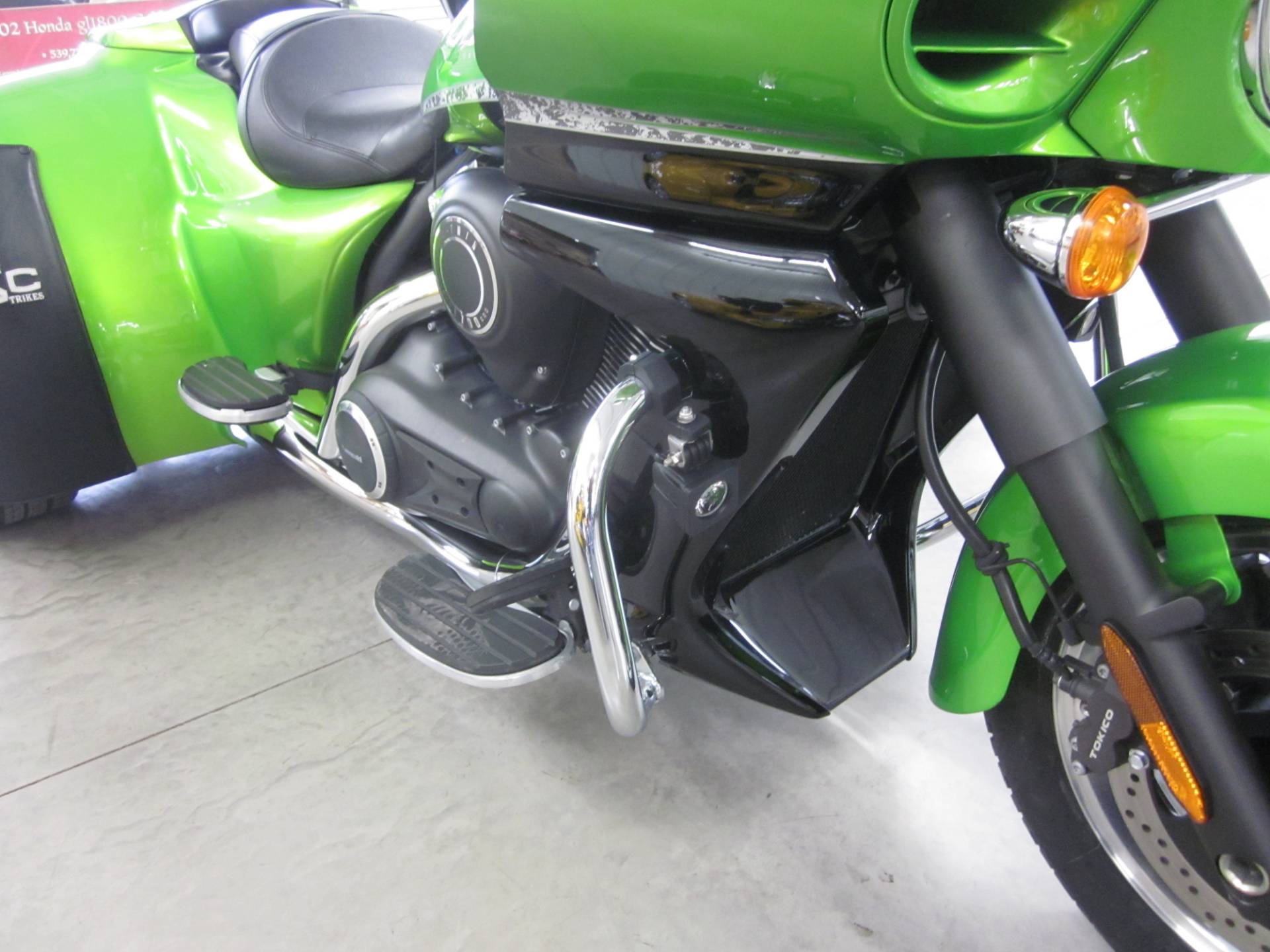

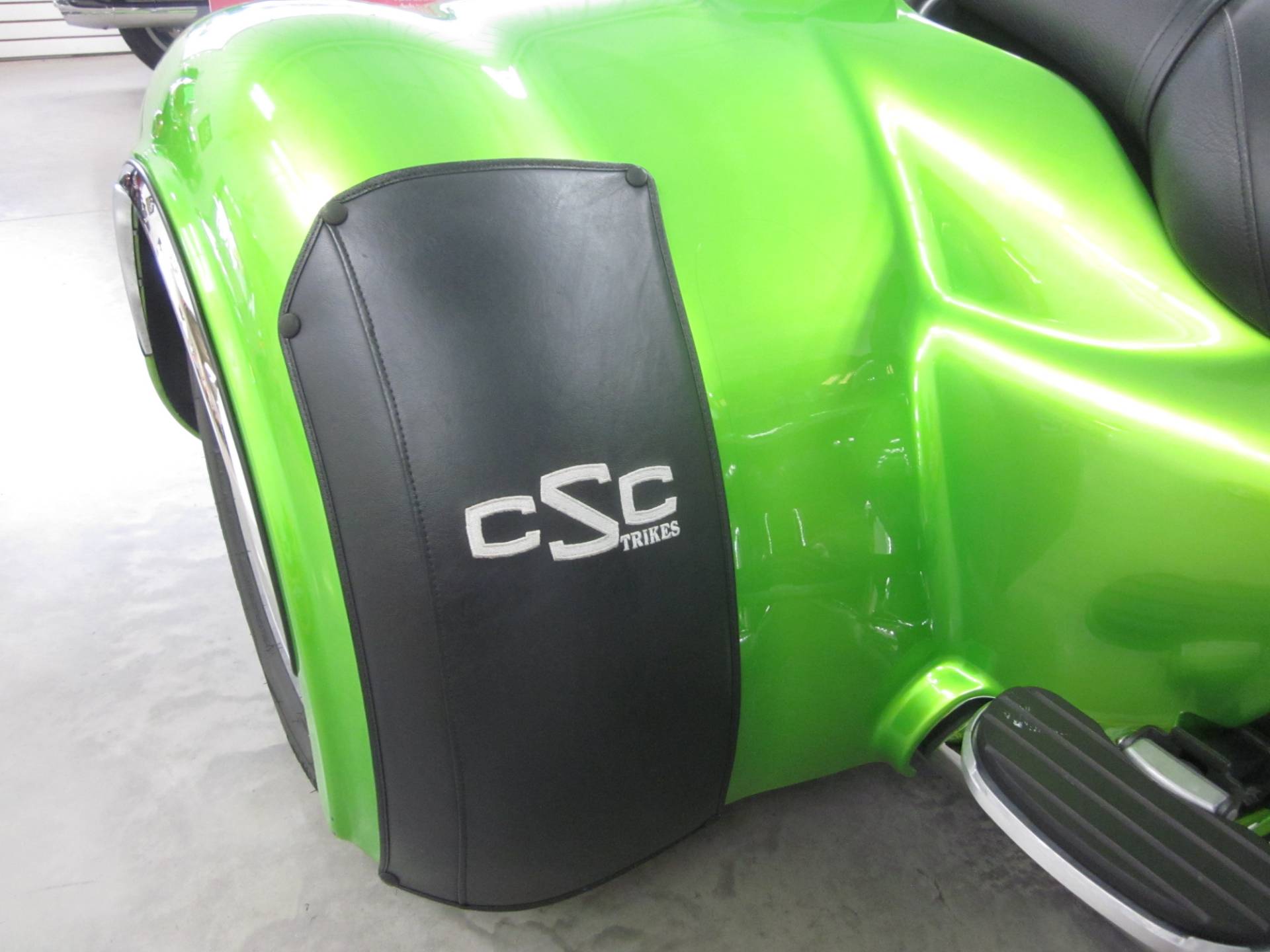

This sweet Kawasaki Vaquero C.S.C. Trike is awesome . We built this Trike a few years ago and is still a head turner ! It has the upgraded performance brakes , easy steer , Chrome rear wheels , led lights and more ! With only 8800 miles on it this jewel is just getting broken in !
Suspension
Performance designed independent suspension with vertically stabilizedopposing Rocker Mono Shock. Shock Spring: QA 1 300 Ib linear wound racing spring designed to accommodate up to 650 Ibs plus optional preloader
Drivetrain
Twin reduction jackshaft belt drive with 50mm Gates performance belt kit and new purpose designed sprockets
Disc Brake System
Standard: Alloy calipers with 11.5” purpose designed rotors
Performance Brake (optional upgrade): Custom designed nickel plated drilled rotors with a custom four piston billet caliper. Calipers are brushed aluminum, red anodized and engraved with “CSC”
Optional Accessories
PowerTrak
Shock Spring Preloader

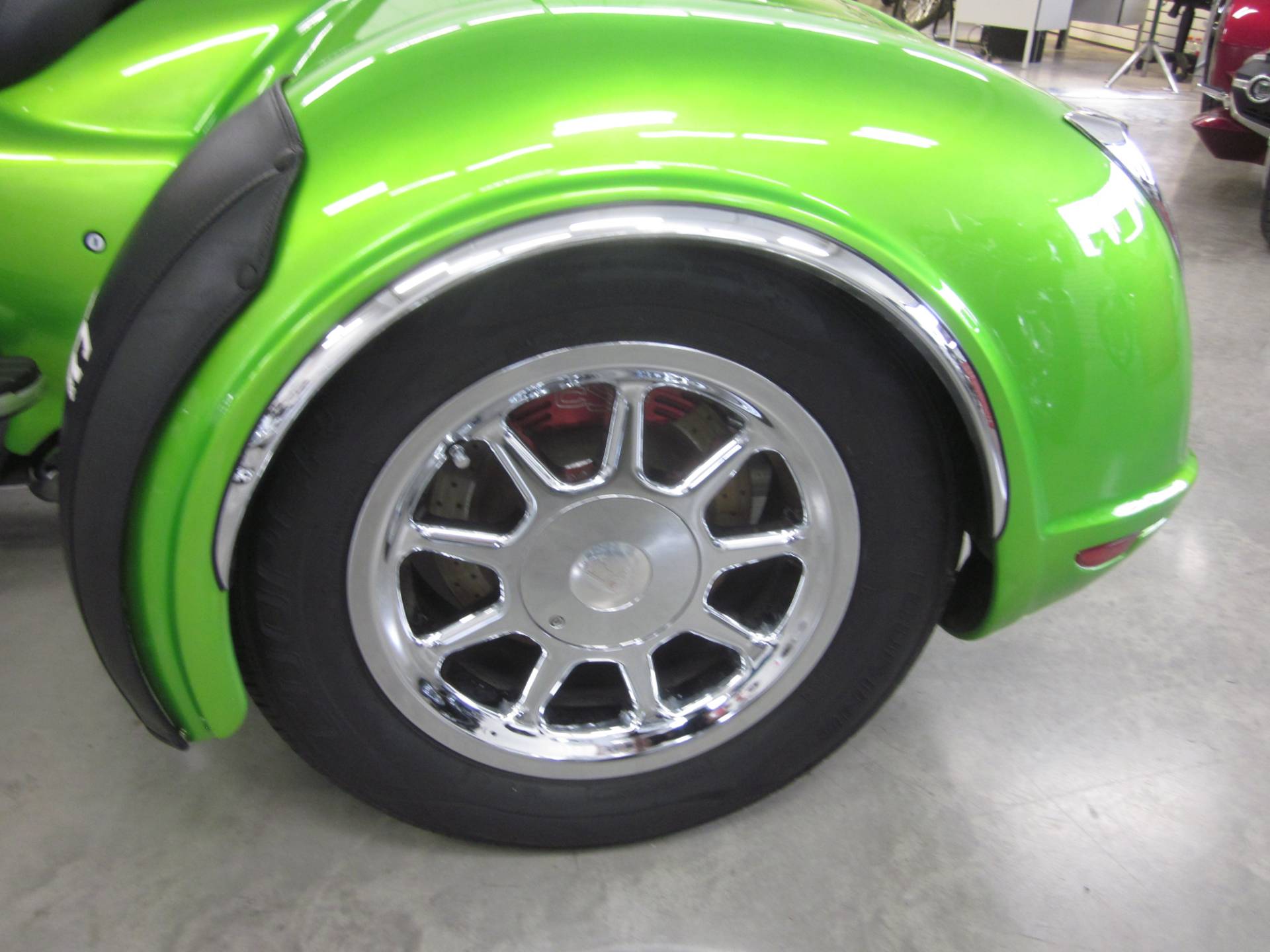

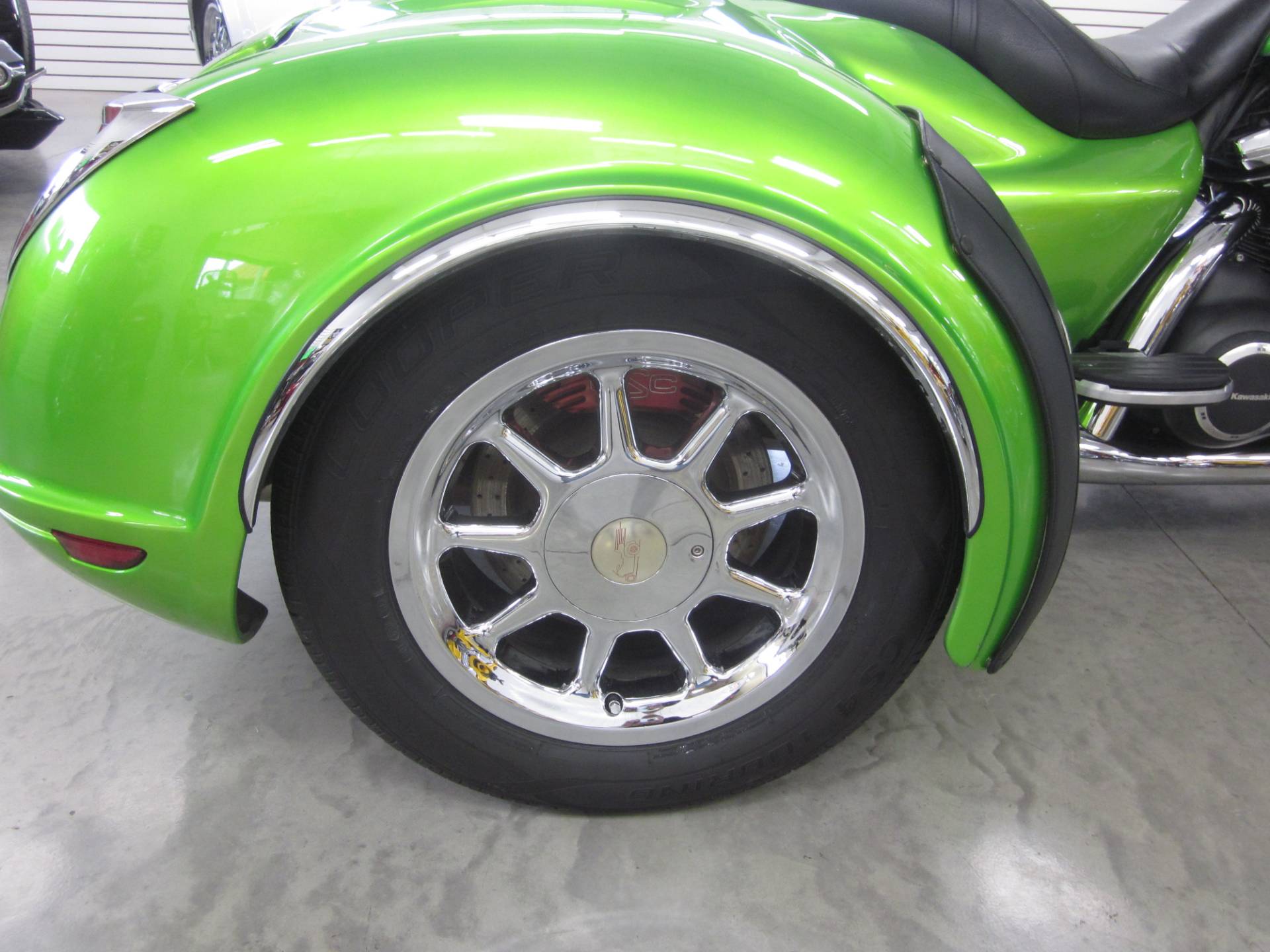

Chrome Wheel Well Trim
Fully Adjustable Shock (Adjusts “On The Fly”)
Luggage Rack (Nomad)
Specifications
Kruze Kit Designed to Fit Kawasaki Vulcan 1700 Voyager, Nomad & Vaquero Models From 2009 - Current
Curb weight: 1221 Ibs (553.8 kg)
Trike kit weight: 606 Ibs (274.9 kg)
Wheel base with Power Trak: 76.5 in (194.3 cm)
Overall Length with Power Trak: 112 in (284.5 cm)
Overall Width: 61 in (154.9 cm)
Ground Clearance: 4.5 in (11.5 cm)
Trailer Hitch Ball Height: (1-7/8 ball): 13 in (33 cm)
Trunk Storage Capacity: 8.1 cu ft (229.4 cu cm)
